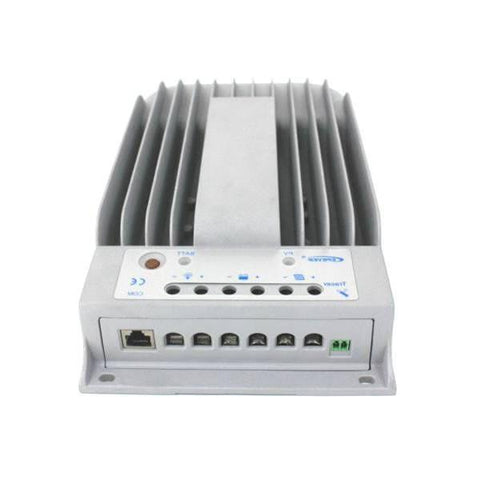

Epsolar Tracer 2215BN 20A MPPT Charge Controller - 12V/24V
SKU EP-TRACER1215BN
The iTracer- BN Series is a flagship among all the Tracer MPPT (Maximum Power Point Tracking) controllers. Designed with industrial materials and die-cast aluminum housing cooling system, to improve the controller’s performance and lifespan. To meet different projects and applications, the unit boasts a built-in RS485 bus interface, with Modbus communication protocol, easy for communication extension with other devices. Optional programmable ability makes the controllers work with different batteries. Control your DC load remotely; on/off manually, via timer, light etc. A current limiting function gives you more flexibility for a solar PV array.
Weight:0.8 kg
Min PPT Voltage:14 V
Max PPT Voltage:108 VDC
Startup Voltage:14 VDC
Shutdown Voltage:14 V
Max Input Voltage:150 V
Max DC Power:264 W
Max DC Current:10 A
Max DC Inputs:1
Has DC Fuses:0
Connector:Tr
Included Connectors:0
MPPT Trackers:1
Has Integrated DC Switch:No
