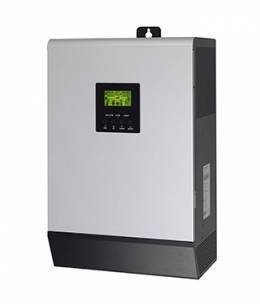

MECER Hybrid TRIO 5000VA / 4000W Inverter Charger X 3 of 3000W MPPT 220V 48V DC
2 YEAR CARRY IN WARRANTY + FREE SHIPPING IN SA
SKU SOL-I-AX-5T
Axpert Plus Duo is built in three MPP trackers and enhanced with solar charger and AC charger capability. Compared to the first generation, it greatly improves solar conversion efficiency. With larger AC charger and solar charger, the maximum charging current will reach 100A or 140A depending on different models and it greatly shortens battery charging hours.
- MECER Axpert Plus Duo 5000VA / 4000W Hybrid Pure Sine Wave Off-Grid Inverter,
- 3 x MPPT Solar charge Controller 6000W 60 x2 Amp,
- 220V AC Input,
- 48V DC Battery Input - requires deep cycle batteries (batteries not included), 60Amp AC Battery Charger,
- Overload and short circuit protection,
- Configurable AC/Solar input priority via LCD setting,
- 16Kg,
- 60~115VDC MPPT Range @ Operating Voltage,
- Parallel operation with up to 9 units
Features:
- Pure sine wave inverter
- Built-in 2 strings of MPPT solar charge controller depending on models
- Enhanced AC charger to 60A
- Wide battery input range
- Selectable input voltage range for home appliances and personal computers
- Selectable high power charging current
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Optional remote panel available
- Multiple communication : USB & SNMP
- Parallel operation with up to 9 units only available for 5KVA
Specifications and features
Model Axpert Plus Tri
5K RATED POWER 5000VA/4000W
INPUT
- Voltage 230 VAC
- Selectable Voltage Range 170-280 VAC (For Personal Computers)
- 90-280 VAC (For Home Appliances)
- Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
- AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
- Surge Power 10000VA
- Efficiency (Peak) 90%
- Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform Pure sine wave
BATTERY
- Battery Voltage 48 VDC
- Floating Charge Voltage 54 VDC
- Overcharge Protection 60 VDC
SOLAR CHARGER & AC Charger
- Maximum PV Array Power 9000W
- (2-MPPT tracker)
- MPPT Range @ Operating Voltage 60~115VDC
- Maximum PV Array Open Circuit Voltage 145 VDC
- Maximum Solar Charge Current 60A x 3
- Maximum AC Charge 60A
- Current
- Maximum Charge Current 240A
- Maximum Efficiency 98%
PHYSICAL
- Dimension, D x W x H (mm) 194 x 295 x 455
- Net Weight (kgs) 17
OPERATING ENVIRONMENT
- Humidity 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature 0°C to 55°C
- Storage Temperature -15°C to 60°C
