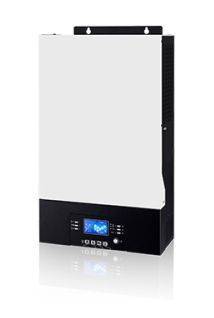

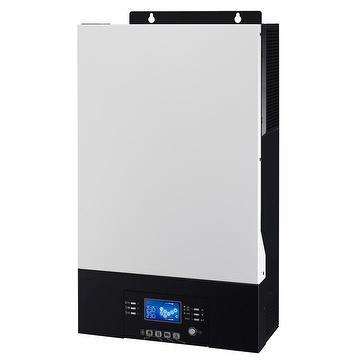

Mecer Axpert King 5000VA / 5000W Hybrid Pure Sine Wave Inverter 220V 48V DC
2 YEAR CARRY IN WARRANTY + FREE SHIPPING IN SA
SKU SOL-I-AX-5KP
MECER Axpert King is designed with zero transfer time perfect for critical devices such as servers and ATM. It’s equipped with powerful 140A super-charger, 80A MPPT solar charger and 60A AC charger. Detachable LCD control module allows users to remotely monitor this inverter. It’s also able to expand power capacity to 45KW with 9 units in parallel operation.
•Zero (0ms) transfer time, protects mission-critical loads: servers, ATMs.
•Pure sine wave solar inverter.
•Selectable high-power charging current.
•Maximum PV power 4000W
•Wide DC input rage.
•Configurable AC/Solar input priority via LCD setting.
•Compatible to Utility Mains or generator input.
•Auto restart while AC is recovering.
•Overload and short circuit protection.
•Smart battery charger design for optimized battery performance.
•Cold start function.
•Feed back to the grid
•Note: Parallel Card INCLUDED in this model
Benefits over 5kVA MKS and MKS II:
•Bluetooth connectivity (Mobile App)
•Zero (0ms) transfer time is ideal for critical equipment like servers and medical equipment
•Great for voltage fluctuations. Voltage range 110-280 VAC
Features:
- Pure sine wave inverter
- Output power factor 1 (only 0.8 for 3KP/5KP Models)
- Built-in battery equalization function to extend battery life cycle
- Built-in MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Battery equalization for optimized battery performance and lifecycle
- Parallel operation with up to 9 units only available for Axpert MKS 3KP/4KVA/5KVA*
Specifications and features
- RATED POWER 5000VA/ 5000W
- Parallel Capability Yes, 9 units
- INPUT Voltage 230 VAC
- Selectable Voltage Range 170-280 VA
- Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT AC
- Voltage Regulation (Batt. Mode) 230VAC ± 5%
- Surge Power 10000VA
- Efficiency (Peak) 93%
- Transfer Time 10 ms - 20 ms
- Waveform Pure sine wave
BATTERY & AC CHARGER
- Battery Voltage 48 VDC
- Floating Charge Voltage 54 VDC Max: 58 VDC (Optional 64 VDC, please check with sales)
- Overcharge Protection 60 VDC (Optional 66 VDC, please check with sales)
SOLAR CHARGER & AC CHARGER
- Maximum PV Array Power 4000W
- MPPT Range @ Operating Voltage 60VDC ~115VDC
- Maximum PV Array Open Circuit Voltage 145VDC
- Maximum Solar Charge Current 80A
- Maximum AC Charge Current 60A
- Maximum Charge Current 140A
- Maximum Efficiency 98%
- Standby Power Consumption 2 W
PHYSICAL
- Dimension, D x W x H (mm) 100 x 272 x355
- Net Weight (kgs) 13.5
OPERATING ENVIRONMENT
- Humidity 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature 0°C to 55°C
- Storage Temperature -15°C to 60°C
